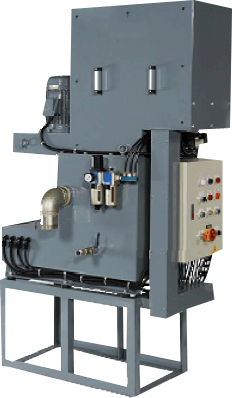

CL Series Centrifuge Filter

Filtration Effect: 70% for 3μ and 95% for 10μ
Unit Flow Rates: 50, 60, 80, 100 and 150 L/min.

The CL centrifuge is offered as a manual, semi-automatic and automatic system. The filter effect is accomplished by high speed rotary bowl. When rotating, the contaminants will attach to the wall of the rotary bowl due to centrifugal force leaving clean coolant to flow out from the center. Works with both oil and water based coolants.

Centrifuge Diagram
Manual Type: CL-50 and CL-80
Semi-automatic Type: CL-60, CL-100 and CL-150
Automatic Type: CLA-100

Suitable for Carbon, Carbide, glass, aluminum, stainless steel, graphite, and quartz.

Flow rates can be increased by using multiple units.

Applications:

Deep hole drilling machines, honing machines, EDM, polishing machines, precision grinding machines, gear grinding machines, cleaning machines, lens grinding machines, glass processing machines and to clean the impure dust inside the hydraulic oil etc…
